The dataset consists of a dataframe of per district crime data in a dataframe, along with polygons shapes of the districts. The dataframe contains

  • home.value: housing value in 1000USD.
  • area: land area of district
  • income: household income in 1000USD.
  • crime: residential burglaries and auto thefts per 1000 households.
  • open.space: measure of open space in district.
  • district: code identifying district, and matching names(columb.polys).

We will use this to illustrate use of MarkovRandomField smoothers. For this dataset, each district has a single observation, but that doesn't have to be the case.

from pymgcv.utils import get_data
import pandas as pd
import matplotlib.pyplot as plt
from matplotlib.patches import Polygon
from matplotlib.collections import PatchCollection
import numpy as np
from pymgcv.gam import GAM
from pymgcv.basis_functions import MarkovRandomField
from pymgcv.terms import S

import pymgcv.plot as gplt
data: pd.DataFrame = get_data("columb")
data["district"] = data["district"].astype("string").astype("category")
data.columns = [c.replace(".", "_") for c in data.columns]

names, polys = get_data("columb.polys")
polys = {
    level.item(): poly[np.isnan(poly).any(axis=1)==False]
    for level, poly in zip(names, polys, strict=True)
    }
print(f"N districts: {len(polys)}")
data.head()

N districts: 49

area  home_value  income      crime  open_space district         x  \
0  0.309441   80.467003  19.531  15.725980    2.850747        0  8.827218
1  0.259329   44.567001  21.232  18.801754    5.296720        1  8.332658
2  0.192468   26.350000  15.956  30.626781    4.534649        2  9.012265
3  0.083841   33.200001   4.477  32.387760    0.394427        3  8.460801
4  0.488888   23.225000  11.252  50.731510    0.405664        4  9.007982

           y
0  14.369076
1  14.031624
2  13.819719
3  13.716962
4  13.296366

We can fit a gam with some smooth terms, including the MarkovRandomField

gam = GAM({
    "crime": S("district", bs=MarkovRandomField(polys=polys), k=15) + S("home_value") + S("income")
})
gam.fit(data)

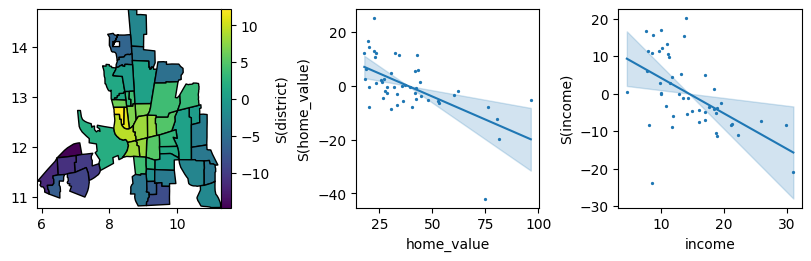

fig, axes = gplt.plot(gam, scatter=True, ncols=3)
fig.set_size_inches(8, 2.5)

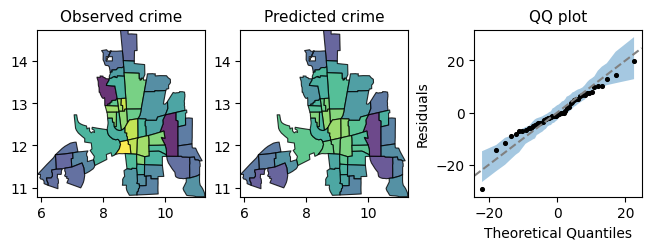

Finally, let's plot the predictions against the data, and add a QQ plot

def plot_polys(polys, values, *, ax, clims):
    patches = []
    for poly in polys.values():
        patches.append(Polygon(poly))

    p = PatchCollection(patches, edgecolor='k', linewidth=0.8)
    p.set_array(values)
    p.set_alpha(0.8)
    p.set_clim(vmin=clims[0], vmax=clims[1])
    ax.add_collection(p)

    all_xy = np.vstack([poly for poly in polys.values()])
    ax.set_xlim(all_xy[:,0].min(), all_xy[:,0].max())
    ax.set_ylim(all_xy[:,1].min(), all_xy[:,1].max())
    return ax

fig, axes = plt.subplots(ncols=3, constrained_layout=True)
# share color limits for comparing
predictions = gam.predict()["crime"]
cmin = min(data["crime"].min(), predictions.min())
cmax = max(data["crime"].max(), predictions.max())
plot_polys(polys, data["crime"], ax=axes[0], clims=(cmin, cmax))
plot_polys(polys, gam.predict()["crime"], ax=axes[1], clims=(cmin, cmax))
gplt.qq(gam, ax=axes[2])

titles = ["Observed crime", "Predicted crime", "QQ plot"]
for ax, title in zip(axes, titles, strict=True):
    ax.set_title(title, fontsize=11)
    ax.set_box_aspect(1)
