CO2 modelling

This example highlights two aspects of GAM modelling:

  • Using cyclical smooths for seasonal components
  • The dangers of extrapolation

The data consists of \(\text{CO}_2\) concentration readings, and the cumulative months c.month. We will predict the \(\text{CO}_2\) concentration, and forecast 36 months into the future.

import matplotlib.pyplot as plt
import numpy as np

from pymgcv.basis_functions import CubicSpline
from pymgcv.gam import GAM, AbstractGAM
from pymgcv.terms import S
from pymgcv.utils import load_rdata_dataframe_from_url

data = load_rdata_dataframe_from_url(
    "https://github.com/cran/gamair/raw/master/data/co2s.rda",
)

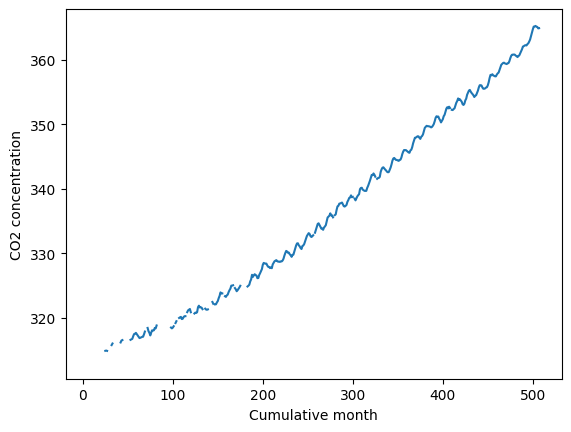

plt.plot(data["c.month"], data["co2"])
plt.xlabel("Cumulative month")
plt.ylabel(r"CO2 concentration")
plt.show()


We'll consider two models, one simple cubic spline model, and one where we use a cyclical component for the month of the year in addition to an overall time component.

Note

When fitting the cylical model, we provide knots, which ensures that the effect of January is the same as January, not that December and January are the same!

simple_gam = GAM({"co2": S("c.month", bs=CubicSpline(), k=100)})
simple_gam.fit(
    data[~data.isna().any(axis=1)],
)

cyclic_gam = GAM(
    {
        "co2": S("c.month", bs=CubicSpline(), k=50)
        + S("month", bs=CubicSpline(cyclic=True), k=12),
    },
)

cyclic_gam.fit(
    data[~data.isna().any(axis=1)],
    knots={"month": np.arange(1, 13)},
    )

def plot_prediction(gam: AbstractGAM, data, predict_data, ax):
    predictions = gam.predict(data=predict_data, compute_se=True)
    ax.plot(data["c.month"], data["co2"], label="data", color="black")
    ax.plot(
        predict_data["c.month"],
        predictions["co2"].fit,
        label="predictions",
        color="tab:orange",
    )
    ax.fill_between(
        predict_data["c.month"],
        predictions["co2"].fit - 2 * predictions["co2"].se,
        predictions["co2"].fit + 2 * predictions["co2"].se,
        alpha=0.2,
        color="tab:orange",
    )


predict_data = {
    "c.month": np.arange(1, 544),
    "month": (np.arange(0, 543) % 12) + 1,
}

fig, axes = plt.subplots(ncols=2, figsize=(8, 4), sharey=True)
models = {"Simple GAM": simple_gam, "Cyclic GAM": cyclic_gam}

for ax, (_name, gam) in zip(axes, models.items(), strict=True):
    plot_prediction(gam, data, predict_data, ax)
    ax.set_box_aspect(1)

plt.legend()
plt.show()

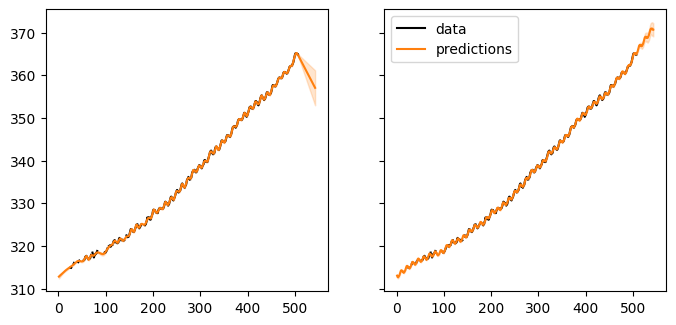

  • The simple model without the cyclical component does not extrapolate in any reasonable way!
  • The cyclic model extrapolates reasonably, and likely has a better fit.
