This example gives an example of 2D spatial interactions, using data from a fish egg survey. The key features in the data are:

  • egg.count - number of eggs found in the net
  • c.dist - distance from 200m seabed contour
  • b.depth - depth of the ocean
  • temp.surf - surface temperature of the ocean
  • temp.20m - water temperature at a depth of 20 meters
  • lat - latitude
  • lon - longitude ˆ- salinity - net.area the area of the net used in m2
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import pymgcv.plot as gplt
from pymgcv import families as fam
from pymgcv.gam import GAM
from pymgcv.terms import Offset, S
from pymgcv.utils import load_rdata_dataframe_from_url


def get_data():
    data = load_rdata_dataframe_from_url(
        "https://github.com/cran/gamair/raw/master/data/mack.rda",
)
    data.columns = [col.replace(".", "_") for col in data.columns]
    data["log_net_area"] = np.log(data["net_area"])
    data["root_b_depth"] = data["b_depth"]**0.5
    data = data.drop(columns=["country", "vessel"])

    coast = load_rdata_dataframe_from_url(
        "https://github.com/cran/gamair/raw/master/data/coast.rda",
)

    # NaN rows split coast data into "segments", so we manually seperate them
    segments = coast.dropna().groupby(coast['lon'].isna().cumsum())
    return data, segments

data, segments = get_data()

fig, ax = plt.subplots(figsize=(6, 8))

for _, seg in segments:
    ax.plot(seg['lon'], seg['lat'], color="k", linewidth=0.8)

ax.set_xlabel("Longitude")
ax.set_ylabel("Latitude")
ax.set_aspect("equal")  # keep correct aspect ratio

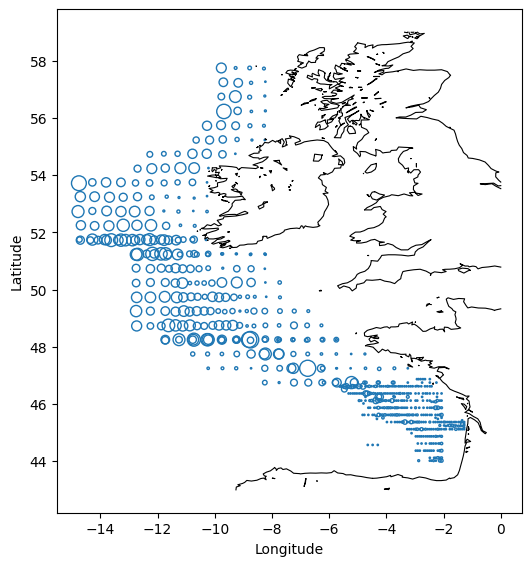

ax.scatter(
    data["lon"], data["lat"], s=1+ data["egg_count"], facecolors='none', edgecolors='C0',
);


Let's look at some key features

to_plot = [
    "egg_count",
    "b_depth",
    "lat",
    "lon",
    "temp_surf",
    "temp_20m",
    "c_dist",
]

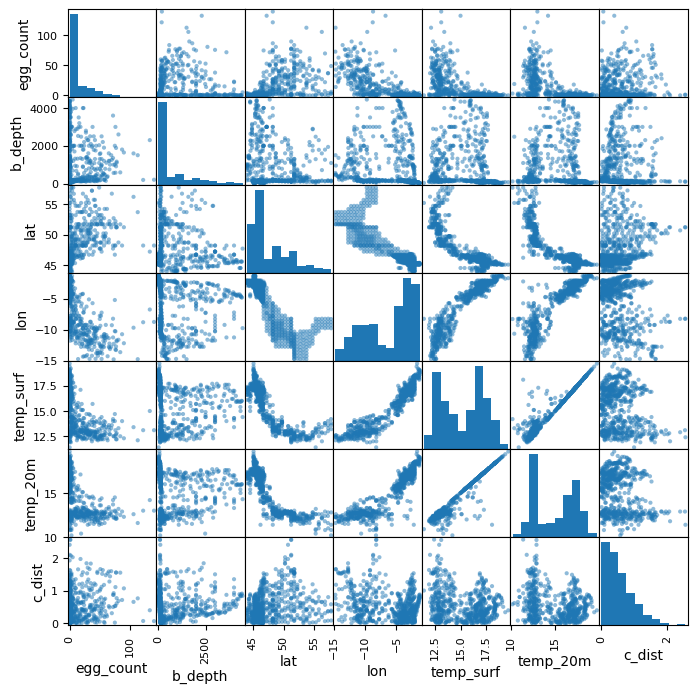

pd.plotting.scatter_matrix(data[to_plot], figsize=(8, 8))
plt.show()


We'll try fitting a Poisson GAM.

Offsets

We know that the number of eggs captured is likely proportional to the net area. We can encode this belief by including an Offset term. Given all the families considered here use a log link function, we can use Offset("log_net_area").

gam1 = GAM({"egg_count" : S("c_dist")
      + S("root_b_depth")
      + S("temp_surf")
      + S("temp_20m")
      + S("lat")
      + S("lon")
      + S("salinity")
      + Offset("log_net_area"), # Account for varying net size!
      }, family = fam.Poisson())

# The data contains NaNs: subset to only required data, then drop nan rows
data = data[gam1.referenced_variables]
data = data[~data.isna().any(axis=1)]
gam1.fit(data=data)
gplt.qq(gam1)
plt.show()

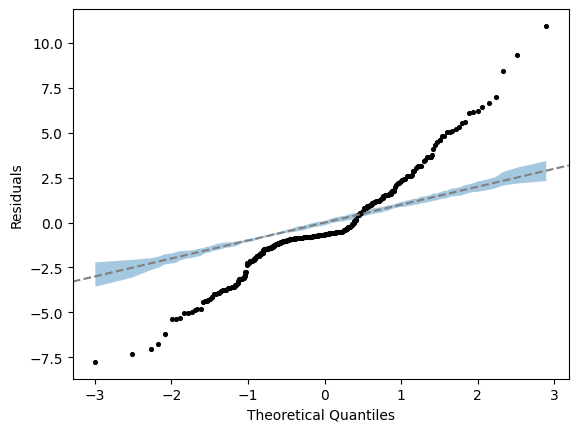

That does not look good! The residuals are overdispersed. Maybe a negative binomial or tweedie is better?

models = {
    "NegativeBinomial": GAM(gam1.predictors, family=fam.NegativeBinomial()),
    "Tweedie": GAM(gam1.predictors, family=fam.Tw()),
     }

fig, axes = plt.subplots(ncols=2, layout="constrained")
for ax, (name, model) in zip(axes, models.items(), strict=True):
    model.fit(data=data)
    gplt.qq(model, ax=ax)
    ax.set_title(name)

plt.show()

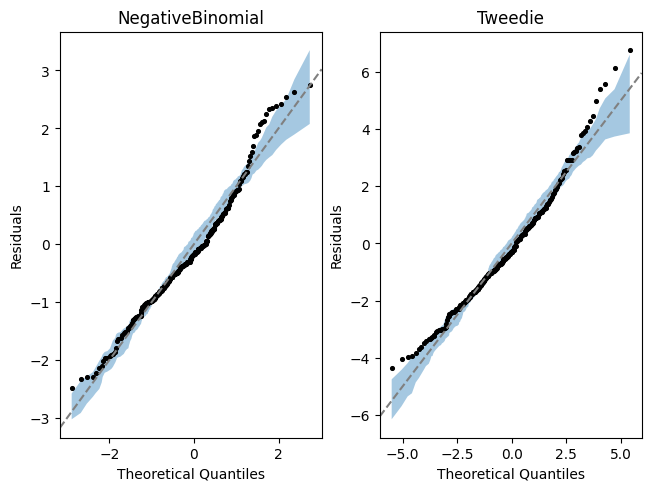

They look better, we'll continue with Tweedie. Let's spatially check the residuals

model = models["Tweedie"]
residuals = model.residuals()
max_val = np.max(np.abs(residuals))  # Set to match on both plots
ax = gplt.hexbin_residuals(residuals, "lon", "lat", data=data, max_val=max_val)

for _, seg in segments:
    ax.plot(seg['lon'], seg['lat'], color="k", linewidth=0.8)

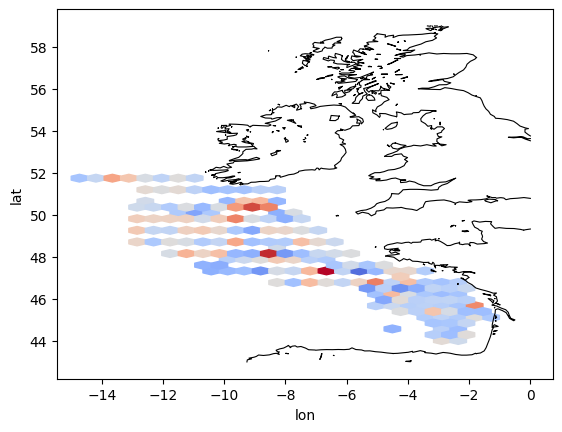

It looks like there is a spatial relationship in the residuals, with regions with predominantly positive or negative residuals. We can try to address this by adding a bivariate smooth for lattitude and longitude

bivariate_model = GAM(
    {
        "egg_count": (
            S("c_dist")
            + S("root_b_depth")
            + S("temp_surf")
            + S("temp_20m")
            + S("lon", "lat", k=100)
            + S("salinity")
            + Offset("log_net_area")
        ),
    },
    family=fam.Tw(),
)
bivariate_model.fit(data=data)
residuals = bivariate_model.residuals()

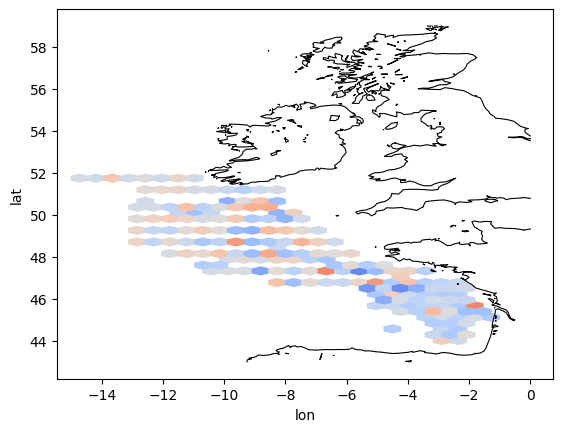

ax = gplt.hexbin_residuals(residuals, "lon", "lat", data=data, max_val=max_val)

for _, seg in segments:
    ax.plot(seg['lon'], seg['lat'], color="k", linewidth=0.8)


That seems to have helped! Let's take a look at the fitted smooths.

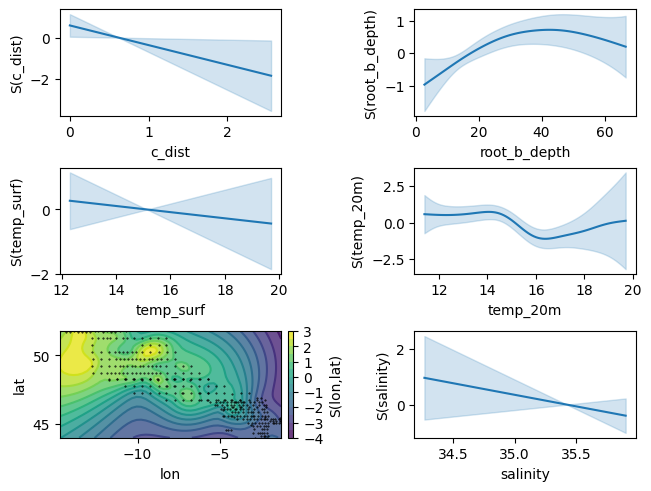

fig, axes = gplt.plot(
    bivariate_model,
    to_plot=S,
    )

# Helpful to see datapoints on 2d plot to assess extrapolation risks
axes[4].scatter(
    data["lon"], data["lat"], s=0.2, color="black", zorder=2,
)

# Adjust y-label format
for ax in axes.flatten():
    ax.set_ylabel(ax.get_ylabel().replace("~", "\n~"))
